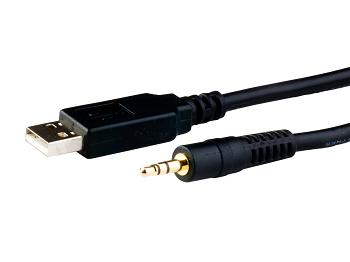

USB TTL Cable
( Model Number : 02 )
|
|
|
|
|
|
 Click to enlarge image |
|
FTDI FT232R Chipset 3.5mm audio jack output. offering connectivity at 5V, 3.3V Cable with audio jack connector with +3.3V based TX, and RX signalling. 3.5mm audio jack output. Connector configuration: tip - TX, ring - RX, sleeve - GND
The USB TTL Serial cables are a range of USB to serial converter cables which provide connectivity between USB and serial UART interfaces. A range of cables are available offering connectivity at 5V, 3.3V or user specified signal levels with various connector interfaces.
All cables feature an FTDI FT232R device integrated within the cable USB type ‘A’ connector, which provide access to UART Transmit (Tx), Receive (Rx), RTS#, CTS#, VCC (5V) and GND connections. All cables are fully RoHS compliant and are FCC/CE approved.
All cables are 1.8m in length.
|
|
